RF Music controller for RGB/RGBW LED lighting 16А, 5-24V DC

Aрт. № RGBWRF15MC
new

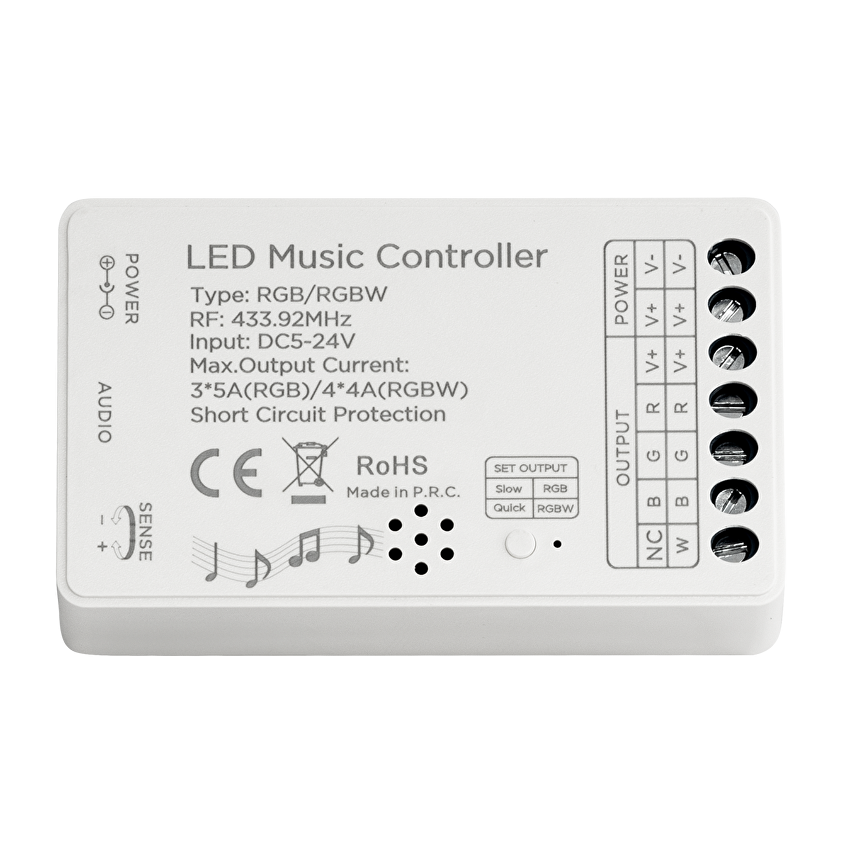

RF Music controller for RGB/RGBW LED lighting 16А, 5-24V DC
RF Music controller for RGB/RGBW LED lighting 16А, 5-24V DC RF Music controller for RGB/RGBW LED lighting 16А, 5-24V DC

RF Music controller for RGB/RGBW LED lighting 16А, 5-24V DC

Art № RGBWRF15MC
description:

Maintain control over your lighting with the intelligent controllers for LED strips UltraLux. Regardless of whether you intend to create an exquisite ambience at home, office or for special events, the Ultralux controllers will provide you with countless opportunities for personalization and control.

  • It works with RGB/RGBW LED strips, and the regime is chosen by a button on the housing.
  • Option for adjusting the microphone sensitivity.
  • Built-in microphone and separate audio port for mono audio jack.
  • Wide supply voltage range 5-24 V DC.

Higher output power. Please pay attention which port will carry out the supply, because the load through the terminal block is comparably higher than the one through the DC jack.

Max. output current:

  • Power supply from port 2 (terminal block): 3 х 5 A - RGB/4 x4 A - RGBW
  • Power supply from port 1 (DC connector): 3 x 2 A - RGB/ 4 x 1.5 A - RGBWMax. output power:
    Power supply from port 2 (terminal block):
  • 75 W (5 V DC), 180 W (12 V DC), 360 W (24 V DC) - RGB
  • 80 W (5 V DC), 192 W (12 V DC), 384 W (24 V DC) - RGBW

Power supply from port 1 (DC connector): 30 W (5 V DC), 72 W (12 V DC), 144 W (24 V DC) – RGB/RGBW

specifications:
Maximum power 85W/192W/384W
Voltage DC 5-24V
Max output current 4X4A
RF frequency 433.92 MHz
Protection rating IP20
Working temperature range -10 °C ÷ +40 °C
Dimensions 72/42/20mm
Control type RF
Range 20m
Dynamic modes 3
Number of static colours 1024
Warranty 2 years
description:

Maintain control over your lighting with the intelligent controllers for LED strips UltraLux. Regardless of whether you intend to create an exquisite ambience at home, office or for special events, the Ultralux controllers will provide you with countless opportunities for personalization and control.

  • It works with RGB/RGBW LED strips, and the regime is chosen by a button on the housing.
  • Option for adjusting the microphone sensitivity.
  • Built-in microphone and separate audio port for mono audio jack.
  • Wide supply voltage range 5-24 V DC.

Higher output power. Please pay attention which port will carry out the supply, because the load through the terminal block is comparably higher than the one through the DC jack.

Max. output current:

  • Power supply from port 2 (terminal block): 3 х 5 A - RGB/4 x4 A - RGBW
  • Power supply from port 1 (DC connector): 3 x 2 A - RGB/ 4 x 1.5 A - RGBWMax. output power:
    Power supply from port 2 (terminal block):
  • 75 W (5 V DC), 180 W (12 V DC), 360 W (24 V DC) - RGB
  • 80 W (5 V DC), 192 W (12 V DC), 384 W (24 V DC) - RGBW

Power supply from port 1 (DC connector): 30 W (5 V DC), 72 W (12 V DC), 144 W (24 V DC) – RGB/RGBW
